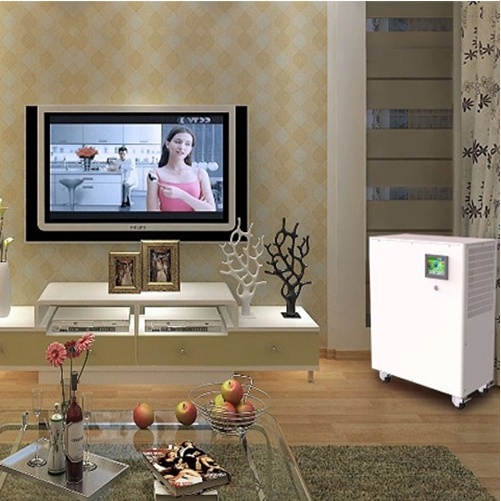

Compact Design Solar Off Grid Power System All In One Stable Performance

Product Categories
Xiamen Lynsa Intelligent Technology Co.,Ltd.
Contact Now

Compact Design Solar Off Grid Power System All In One Stable Performance

  • 1
  • 2
  • 3

Brand Name : MotekPower

Model Number : MP-6530BDL

Certification : CE/SAA/G83/VDE4105/VDE0126/VDE0124

Place of Origin : China

MOQ : 20

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200 Units/ Month

Delivery Time : 14-21D

Packaging Details : Neutral Packing

Model : MP-6530BDL

SOLAR INPUT : 75-140V 2400W

AC INPUT : 3000W

AC OUTPUT : 3000W

PHASE : UNIPHASE

BULIT-IN BATTERY : LI-ION BATTERY 52V 6500Wh

FEED : YES

UPS : YES

N.W : 132KGS

PRODUCT SIZE : 780*347*910

Contact Now

solar power system for home solar on and off grid power system power station complete off on solar grid solar power

Product Overview

MP-6530BDL on and off grid hybrid solar energy system

Built-in solar controller;

Built-in lithium ion battery;

Built-in AC charger;

Built-in inverter;

Quick Details

Place of Origin: Xiamen, China
Brand Name: MotekPower
Model Number: MP-6530BDL
Application: HOME
Work Time (h): 2~3hours
Battery capacity: 6.5kwh
Battery Type: Lithium Battery
Inverter Wave Form: Pure Sinewave
Display: LCD
Product name: solar energy system
Warranty: 5years
Certificate: CE, SAA
Solar system type: Grid Tie Solar Power Plant
Controller: MPPT
Color: light grey
Load Power (W): 2000 or 3000w
Specification: Normal
Solar Power (W): 2400w
Output Voltage (V): 100/110/120/220/230/240v
Packaging & Deliver
Packaging Details: wooden case+pallet for the solar energy system;
Lead Time : Shipped in 35 days after payment
Model MP6530B
Battery capacity 6.5kwh
type Imported brand li-ion battery
Output Rated Output Power 3000w 2000w
Peak output Power 4000w 3000w
Output Voltage 220/230/240v AC 100/110/120v AC
Output Frequency 50Hz±5Hz 60Hz±5Hz
Overload Ability 120%<load<1305@10min; 130%<load<150%@10s
UPS Function Yes
Work Mode on & off grid
Max Efficiency 92% (>70% load)
AC Charge Input Voltage 203-253v AC 102-127v AC
Power Factor ≥0.95 (full load)
Input Frequency 47.5-51.5Hz 58-62Hz
Max Charge Power 3000W 2400W
Max Efficiency >92%
PV Charge Max Input Power 2400W
Start-up Voltage 75v DC
MPPT Amount 2
MPPT Input Voltage 75v-140v DC
Max Input Voltage 150V DC
MPPT Efficiency 99.5%
Max Efficiency >96%
Solar Charging Model MPPT
Working Condition Relative Humidity 5%-90%
Temperature 0-45°c
Product Dimension (779*350*912)mm
Packing Dimension (880*525*1080)mm
Net Weight 135kg
Gross Weight 160kg
Compact Design Solar Off Grid Power System All In One Stable Performance
Compact Design Solar Off Grid Power System All In One Stable Performance
Compact Design Solar Off Grid Power System All In One Stable Performance
4 Working Modes:
Peak Shaving Mode:
when the electricity rate is low, the solar system get energy from solar module and storage it; when the electricity rate is high, the solar system not only storage energy from solar module, but also provide power for loads; When mains supply fails, the system automatically works as uninterrupted power supply.
ECO Saving Mode:
The energy generated from solar module is for home use, and the system isn't connected to the grid, remaining energy will be stored in the solar system. When it's blacked out or emergency occurs, the system works as UPS to guarantee normal work of load.
Economic Benefit Mode:
The energy generated from solar module is for home use, and the system is connected to the grid. When it's blacked out or emergency occurs, the system works as UPS to guarantee normal work of load.
Off-grid Mode:
When the capacity is larger than minimum retention of the system, the system provide power for load; When the capacity is lower than minimum retention of the system, the grid provide power for load; When it's blacked out or emergency occurs, the system works as UPS to guarantee normal work of load.
